BIOLOGY A&P 1 LAB MANUAL MICROSCOPE SIDE


Roll over the number on the image or use the list below the image to identify the name ot the desired area.

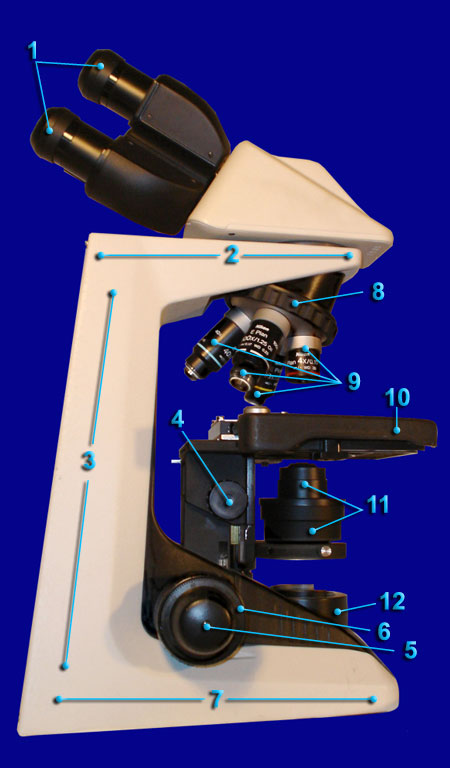

Microscope Side

1. Ocular Lenses
2. Body Tube
3. Arm
4. Condenser Adjustment Knob
5. Fine Adjustment Knob
6. Coarse Adjustment Knob
 7. Base
8. Nose Piece
9. Objective Lenes
10. Stage
11. Condenser Lenes
12. Illuminator
