BIOLOGY A&P 1 LAB MANUAL MICROSCOPE FRONT


Roll over the number on the image or use the list below the image to identify the name ot the desired area.

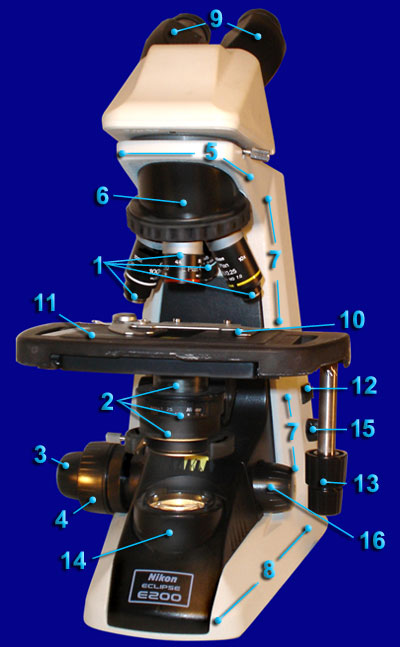

Microscope Front

1. Objective Lenes
2. Condenser Lenes
3. Fine Adjustment Knob
4. Coarse Adjustment Knob
5. Body Tube
6. Nose Piece
7. Arm
8. Base
9. Ocular Lenses
10. Stage Clip
11. Stage
12. Light Switch
13. Slide Adjustment Knob
14. Illuminator
15. Light Adjustment Knob
16. Fine Adjustment Knob
